Setting Up and Using Sync to m3ter Invocable Action

As part of your m3ter Connector for Salesforce managed package and as a alternative to manually syncing your Salesforce data with your m3ter data, you can set up and configure an Invocable Action (IA) and enable event-driven automated syncing of data.

The Sync to m3ter Invocable Action provides a mechanism for initiating synchronization between Salesforce and m3ter:

• Allows for easy integration with Salesforce Flows and Apex, enabling automated sync processes based on a customer business process or automation needs.

• Extends the current manual sync functionality and leverages the same metadata / configuration driven approach by adding a layer of extensibility, namely via a new IA named Sync To m3ter

This topic explains how to set up and work with the Sync to m3ter IA feature for your m3ter Connector managed package, and provides essential reference information on its details, design, and operational constraints:

• Implementing Sync to m3ter IA

• Reviewing Feature Details

• Reviewing Guardrails and Limits

• Enforcing Asynchronous Processing

Implementing Sync to m3ter IA

There are two ways you can implement Sync to m3ter IA feature for use with your managed package:

• Flow

• APEX

Flow

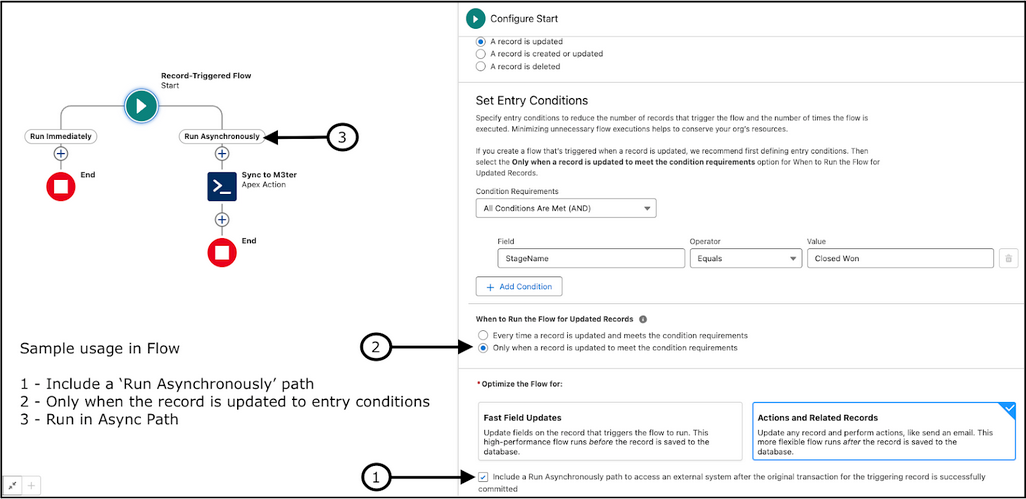

The following diagram highlights the key settings when implementing with Flow using Recorded Trigger Flows:

You must perform three configuration tasks to ensure that the Action performs as expected when using Record Triggered Flows:

1. To enable Run Asynchronously, you must select the checkbox for:

• Include a Run Asynchronously path to access an external system after the original transaction for the triggering record is successfully committed.

2. In the options for When to Run the Flow for Updated Records, you must select:

• Only when a record is updated to meet the condition requirements.

3. You must add the Action to the Run Asynchronously path.

APEX

For implementing with APEX, the following is required and contains explanatory comments:

1
// Create a new sync request
2
m3.SyncToM3terService.M3terSyncRequest req = new m3.SyncToM3terService.M3terSyncRequest();
3
req.parentRecordId = '006S900000795MMIAY';  // Replace with an actual Salesforce ID
4

5
// Call the invocable action
6
List<m3.SyncToM3terService.M3terSyncResult> results = m3.SyncToM3terService.syncToM3ter(
7
    new List<m3.SyncToM3terService.M3terSyncRequest>{req}
8
);
9

10
// Process the results
11
if (!results.isEmpty()) {
12
    m3.SyncToM3terService.M3terSyncResult result = results[0];
13

14
    System.debug('Overall Sync Success: ' + result.success);
15
    System.debug('Sync Status: ' + result.syncStatus);
16
    System.debug('Sync Message: ' + result.message);
17

18
    // Output concatenated results
19
    System.debug('Concatenated Results:\n' + result.concatenatedResults);
20

21
    // Process individual object results
22
    for (m3.SyncToM3terService.M3terSyncObjectResult objResult : result.objectResults) {
23
        System.debug('Object: ' + objResult.objectName +
24
                     ', Success: ' + objResult.success +
25
                     ', Message: ' + objResult.message +
26
                     ', Salesforce ID: ' + objResult.salesforceId);
27
    }
28
} else {
29
    System.debug('No results returned from sync operation.');
30
}
31

Sample Outputs

1. Success = True, Sync Status = Completed:

15:52:39.49 (2279271858)|USER_DEBUG|[12]|DEBUG|Overall Sync Success: true
15:52:39.49 (2279288498)|USER_DEBUG|[13]|DEBUG|Sync Status: Complete
15:52:39.49 (2279300703)|USER_DEBUG|[14]|DEBUG|Sync Message: Sync process completed successfully
15:52:39.49 (2279312987)|USER_DEBUG|[17]|DEBUG|Concatenated Results:
Object: Account, Success: true, Message: m3ter Identifier: d82738f3-d1d7-4a13-94a2-757658d64948, Salesforce ID: 001S900000RzsIUIAZ
Object: Contract, Success: true, Message: m3ter Identifier: e383ee1c-01e7-4f56-a220-cbf4888bd9ec, Salesforce ID: 006S900000795MNIAY
Object: Commitment, Success: true, Message: m3ter Identifier: acc4483e-f74c-4fb2-80ed-219480892a90, Salesforce ID: 006S900000795MNIAY
Object: Plan, Success: true, Message:m3ter Identifier: b22233fe-5d97-4961-a3e8-24e97df0fd45, Salesforce ID: 00kS9000001Nxy5IAC
Object: AccountPlan, Success: true, Message: m3ter Identifier: b22233fe-5d97-4961-a3e8-24e97df0fd45, Salesforce ID: 00kS9000001Nxy5IAC

2. Success = False, Sync Status = Partial Success:

15:29:01.57 (2557064317)|USER_DEBUG|[12]|DEBUG|Overall Sync Success: false
15:29:01.57 (2557081586)|USER_DEBUG|[13]|DEBUG|Sync Status: Partial Success
15:29:01.57 (2557093491)|USER_DEBUG|[14]|DEBUG|Sync Message: Sync process completed successfully
15:29:01.57 (2557105264)|USER_DEBUG|[17]|DEBUG|Concatenated Results:
Object: Account, Success: true, Message: m3ter Identifier: d82738f3-d1d7-4a13-94a2-757658d64948, Salesforce ID: 001S900000RzsIUIAZ
Object: Contract, Success: true, Message: m3ter Identifier: 83df45e7-78ea-4211-8d12-6220b7c7ca86, Salesforce ID: 006S900000795MNIAY
Object: Commitment, Success: false, Message: Commitment would overlap with existing Commitment 293b2bca-fa87-4036-9a0b-e0f1d3cd8c9e, Salesforce ID: 006S900000795MNIAY
Object: Plan, Success: false, Message: The object plans for the record 00kS9000001Nxy5IAC was flagged to not sync., Salesforce ID: 00kS9000001Nxy5IAC
Object: Pricing, Success: false, Message: The object pricings for the record 00kS9000001Nxy5IAC was flagged to not sync., Salesforce ID: 00kS9000001Nxy5IAC
Object: AccountPlan, Success: false, Message: AccountPlan would overlap with AccountPlan 544ecdae-54a5-4654-b0fb-b503a7ed58b2 for the same product 21e063b6-2350-4add-a028-3e6ad5b233ed, Salesforce ID: 00kS9000001Nxy5IAC

Reviewing Feature Details

This section provides important reference information if you choose to implement the Sync to m3ter IA feature.

Invocable Action - Sync to m3ter

Individual Sync Results Details

Reviewing Guardrails and Limits

Some operational safeguards and design constraints are built into the Sync to m3ter IA. Please review this section before implementing and running the feature.

Single Record Processing

To ensure predictable behavior and prevents resource exhaustion:

• The Action is explicitly designed to process only one record at a time.

• Multiple record requests will result in a Failed status with appropriate error message.

Record Validation

Validation checks:

• Performs existence check on the parent record before initiating sync.

• Returns specific error statuses for:

  • Invalid/null record IDs.

  • Non-existent records.

  • Record access issues.

Status Codes and Messages

Three status codes are given:

• Completed: All objects synced successful.

• Partial Success: Some objects synced successfully, others failed.

• Failed: System-level failures (CPU limits, validation errors, and so on).

Enforcing Asynchronous Processing

Given the action will perform a number of API callouts to m3ter, you must ensure that it is called from a separate transaction to avoid provoking the following error:

• "You have uncommitted work pending. Please commit or rollback before calling out"

This is a common Salesforce error related to transaction management and external callouts.

This error is particularly relevant to the Sync to m3ter Invocable Action because:

1. Flows: If the action is not set to run asynchronously, and there are any DML operations before it in the flow, you will encounter this error.

2. Apex: If you try to call the action directly after performing DML operations in the same transaction, you will get this error.

To avoid this error:

1. Flows: Always use the "Run Asynchronously" option for the Sync to m3ter action.

2. Apex: Use the @future(callout=true) method. This ensures the callout happens in a separate transaction.
